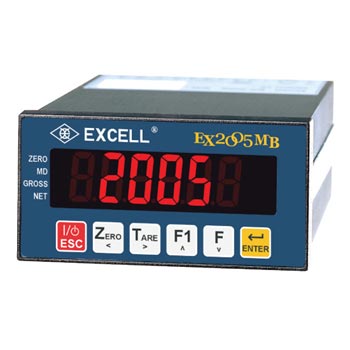

EX-2005MB

Liên hệ

12345

Product Description Specification Options Download

‧ DC power supply: with DC12V~24V power supply design for the application of flame-proof system
‧ Built-in MODBUS RTU format easily connect with any human machine interface and PLC
‧ Built-in full duplex RS232C interface or RS-485 serial interface
‧ Compact DIN size body
‧ Digital calibration: directly key in the signal voltage value (mV/V) via the keyboard, no need to apply any weight to the weigher
‧ Large LED display (6 digit, height 16mm)
‧ Waterproof: splash proof front panel (IP65)
‧ Kilogram (kg), gram (g), ton (t), pound (lb) weighing modes available
‧ Gross/Net/Accumulation weight / Accumulation times display
‧ 6 weight comparison modes
‧ Manual/Automatic discharge operation
‧ Linearity calibration: up to 5 calibration points
‧ Adjustable filter: prevent vibration of environment
‧ Memorized load cell output voltage (mV/V) for future maintenance

Best Authentic Sneakers Air Jordan III (3) Retro 'Black Flip' - Even More Images

Operating Temperature	0°C ~ 40°C(32°F ~ 104°F)
Power Source	DC 12V ~ DC 24V
Dimensions	96 × 48 × 140mm (W x D x H)
Display	LED 6 Digits; 16mm (Height)

‧ OP-02-1 BCD parallel data output interface (Open Collector)
‧ OP-02-2 BCD parallel data output interface (TTL)
‧ OP-03 16 bits Analog current/voltage output interface (0~20 mA, 0~10V)
‧ OP-04 Control I /O (4 In /4 Out) + Set point Input interface (BCD Code)
‧ OP-04E Relay output (4 In /4 Out)
‧ OP-04C Hi, Lo, OK Input interface (BCD)
‧ OP-04F Set point Input interface (BCD)
‧ OP-05 Control I /O (8 In /8 Out) interface
‧ OP-05E Relay output (8 In /8 Out)
