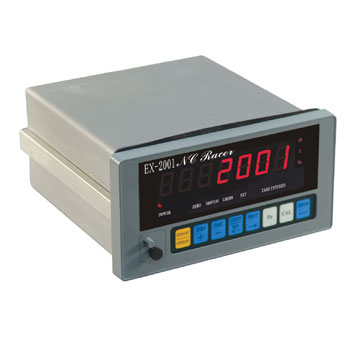

EX-2001NC Racer

Liên hệ

12345

Product Description Specification Options Download

‧ Large LED display (7digit, height 20mm)
‧ High speed A/D conversion with powerful digital processing; input sensitivity 0.3μV/D; update rate 120 times/second
‧ Maximum load cell input voltage: -1~ 20mV
‧ Flexible calibration procedures: 2 point general calibration, 5 point linearity correction
‧ Environmental filter setting for better performance
‧ Animal scale function
‧ Check mode: HI / OK / LO
‧ Special fuse design, convenient for maintenance
‧ Universal worldwide switch mode power supply: 100V~240V AC

Mysneakers nike headquarters Sneakers

Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity	< 85% RH
Power Source	AC100V ~ 240V 50 / 60Hz
Power Consumption	Approx. 10VA
Dimensions	210 × 108 × 207mm (W x H x D)
Display	LED 7 Digits; 20.3mm (Height)

‧ OP-01 RS-422/RS-485
‧ OP-02 Parallel BCD output (TTL / O.C)
‧ OP-03 Analog output
‧ OP-07 RS-232 (in/out) / Current loop / Data clock
‧ OP-08 Control I / O (2 Input / 4 Relay Output)
